Self-Locking Feature

Self-Locking Features

ZaGO offers the widest range of high quality self-locking components available for both military and commercial usage.  All of our Pellet, Strip and Patch products meet or exceed the required specifications for MIL-F-18240, IFI 124 and IFI 524.

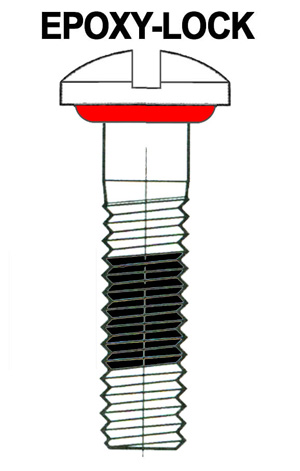

Epoxy - A powerful sealing element that is known to out-perform most of the nylon locking elements in first-off torque evaluations.

Patch - A process by which powdered nylon is sprayed onto the fastener threads, fusing it to the material and rendering it self-locking.

Pellet - A pellet is a firm nylon plug that is inserted into a drilled hole in the threads of the fastener making it self-locking and still fully adjustable.

Pre-Coat 30 - This coating is offered in both acrylic and epoxy formulations.

Strip - The stripping process inserts a bar of Nylon, Kel-F or Vespel into a milled slot in a threaded fastener which makes it self-locking.

Vibration Resistance - Even under conditions of extreme vibration, ZāGO’s vibration resistant coating makes any fastener self-locking.

(Click to Enlarge)





Our philosophy here at ZāGO is that in today’s world the goal should not be to “arrive” but rather to constantly improve our manufacturing processes and products. We will continue to strive to find ways not just to meet our customers’ needs, but to always exceed their expectations.
